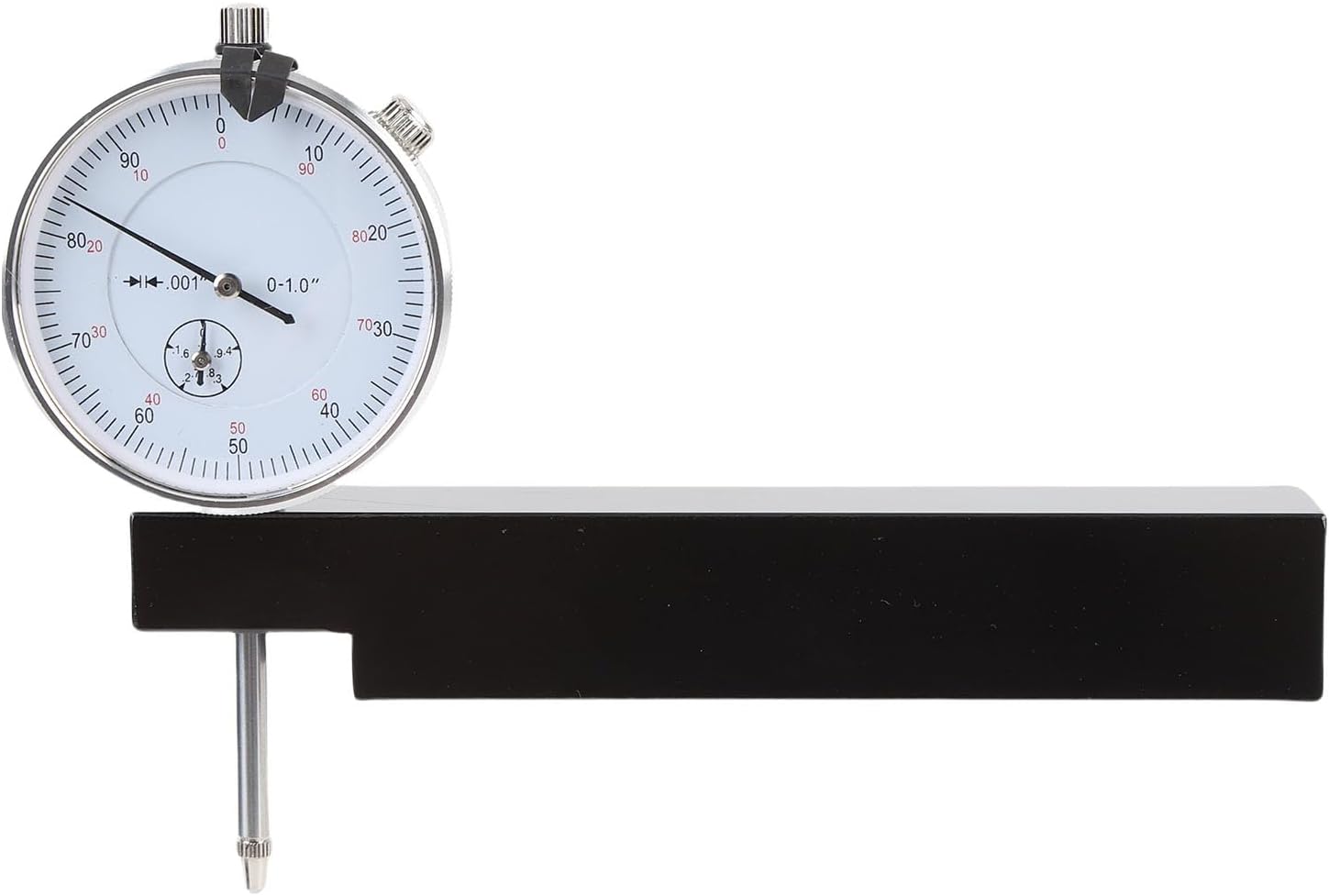

Dioche 6434 Cylinder Bore Gauge Professional 0-1.00 Inch Sleeve Height Measurement Tool for Derv Engines Dial Gauge with Interchangeable Tips for Automotive, Marine, and Equipment

Specifications: Item Type: Sleeve Height and Counter Bore Gauge Material: Steel + aluminium alloy Fitment: for derv Engines, Cylinder Bore Gauge 0-1.00in, Graduation 0.001in, Reading 0-100 Voltage Parameter How to Use 1. Attach the indicator to the base and gently tighten the securing screw. 2. Use the flat measuring point when measuring counterbores. Use the pointed measuring point for sleeves with embossed flanges. 3. Place the gauge on a flat and the indicator by rotating the dial. 4. When the deck is completely clean, you can directly measure the counterbore shoulder and then measure the protrusion height of the sleeve. 5. For cylinder bodies with open ended jackets, the indicator can be inverted from the shown position into the base. This allows for spanning up to a maximum of 5-1/2 inches on the cylinder to inspect sleeve height and counterbore depth. Package List x 4374 Dial Indicator x 4375 Base x 4230 Flat Measuring Tip x 4378 Pointed Measuring Tip x Hex Wrench x Storage Box

• Universal Compatibility: This sleeve height counter bore gauge works flawlessly with derv engines, regardless of brand or model. It delivers precise measurements for cylinder sleeve height, bore depth, , piston to deck clearance, and valve protrusion. for automotive repair, aerospace maintenance, marine engineering, and machinery diagnostics
• Durable Construction: Hardened steel and aluminum alloy ensure resilience under demanding conditions. The sealed dial with tempered glass lens resists scratches while maintaining clarity. Reinforced housing and shock-absorbing base deformation. Etched scales and rugged components provide lasting accuracy even with frequent use
• Precision Measurement: Engineered for exact readings with a 0-1.00 inch and 0.001-inch graduations. The 0-100 scale ensures repeatable accuracy across the entire cylinder diameter. Ideal for achieving tight tolerances in engine rebuilding and diagnostics
• User-Friendly Design: Rotating bezel with clamp simplifies adjustments. Interchangeable limit markers offer reference points without obstructing clamps. The 1/4-inch rear hole enables automatic centering and quick, reliable measurements with minimal effort
• Comprehensive Kit: Includes the 4374 gauge, 4375 base, 4377 flat measuring points, 4378 pointed measuring points, hex wrench, and carrying bag. Covers 0-1 inch measurements with 0.001-inch for organized, on-the-go diagnostics
