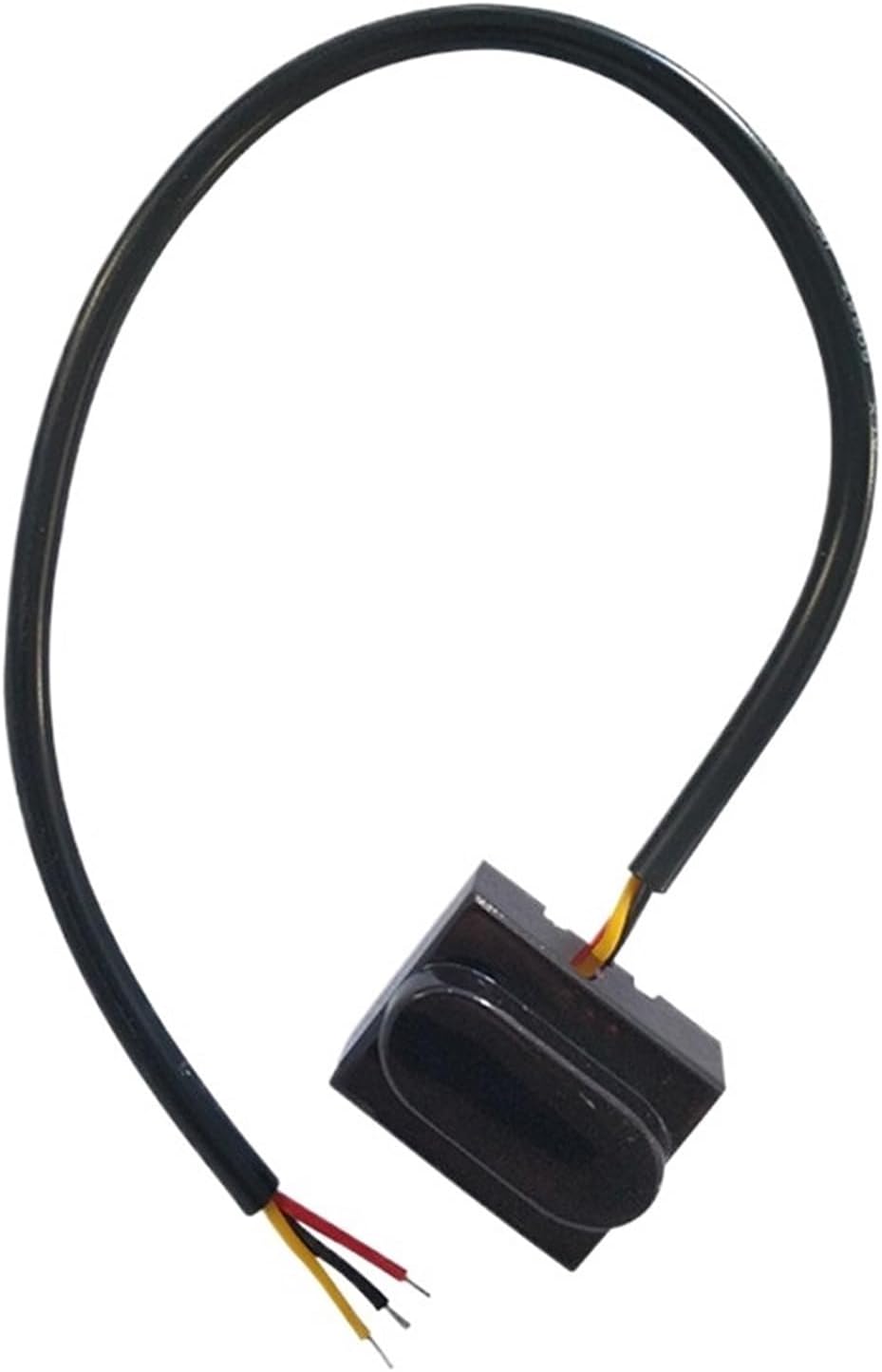

XKC-001A DC5V-12V Object and Human Body Presence Motion Sensor,Infrared Sensor for Smart Home and Cities Products(XKC-001A-T-F5)

Sensors1,output methodXKC-001A-T is an intelligent non-contact switch, infrared sensor with high and low level or NPN drive output. The sensor uses the principle of diffuse reflection of infrared light on objects: when people or objects enter the sensor set In the sensing area, the sensor outputs a signal; the sensor turns off the output after a person or object leaves the sensing area.Note: The output mode is that one sensor can only have one output mode.High and low level signal output: Only one high and low level signal is provided, which is suitable for small current control high current, control external circuit, MCU signal identification judgment, etc.Switch output: The signal sent by the switch sensor is a contact signal, which has two states of open and closed. For example, an infrared sensor switch is a common switch sensor. When an object enters the sensing area set by the sensor, the infrared sensor switch is opened (or closed); when the object leaves the sensor set sensing area, the switch is closed (or opened).NPN output: NPN output is one of the three-wire switch output. When the sensor output is isconnected, it is in a no-voltage floating state and can be connected to the VCC input voltage through a pull-up resistor. When the sensor output is closed, the voltage is 0V, which means it is turned on to 0V (negative power supply). NPN output can directly control the current within 300mA==========High-concerned chemical : Noneis_customized : YesTheory : Optical SensorModel Number : XKC-001AMaterial : PolymerType : Optical-Electronics SensorOutput : Switching TransducerUse : Ray SensorOrigin : Mainland
