YAYZA! 24V LED Driver 400W LED Transformer AC100-130V to DC 24V 16.7A Ultra Slim Power Supply, Constant Low Voltage Adapter for Led Strip Light, Cabinet Lights
4.2 (113 items)
Limited Time SaleUS$22.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213865315 | Release Date | 2026/04/12 | List Price | US$14.80 | Model Number | 213865315 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Stable Output: LED 24V transformer has stable output function. INPUT: 100-130V AC 50/60Hz, Constant voltage DC output: DC 24V, Output Current: 16.7A Max, Maximum Power: 400W, providing you with stable constant voltage DC 24V output function. Size: 9.29x1.93x1.14inch (LxWxH).
- Multiple Safety: The 24V power adapter is equipped with a comprehensive protection mechanism, which has the functions of over-voltage, over-current, overload, short circuit, etc. to ensure the stable and safe operation of the power supply. (It is recommended to keep the total wattage of your connected lights at 80% (320W) or less of the 400W capacity for optimal performance.)

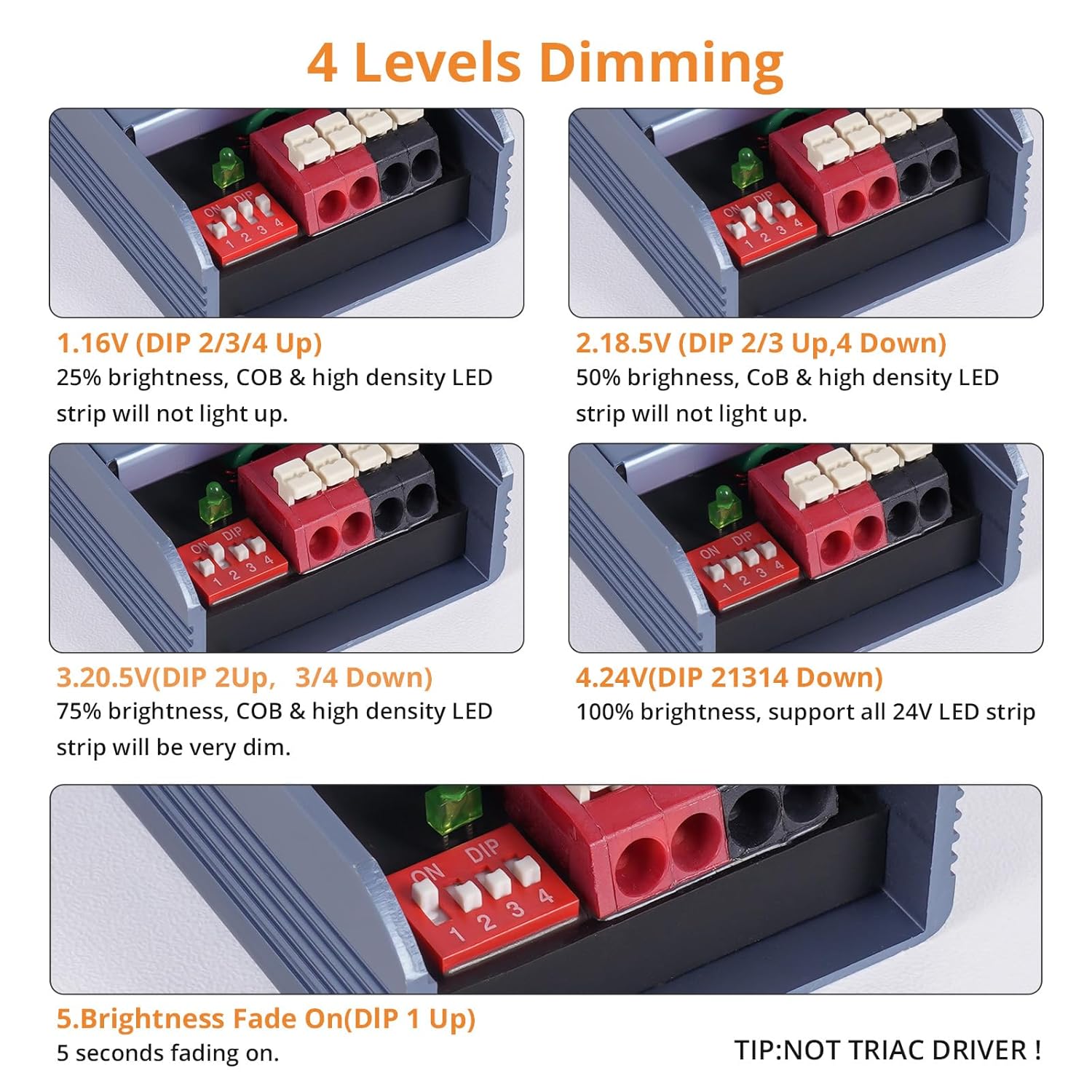

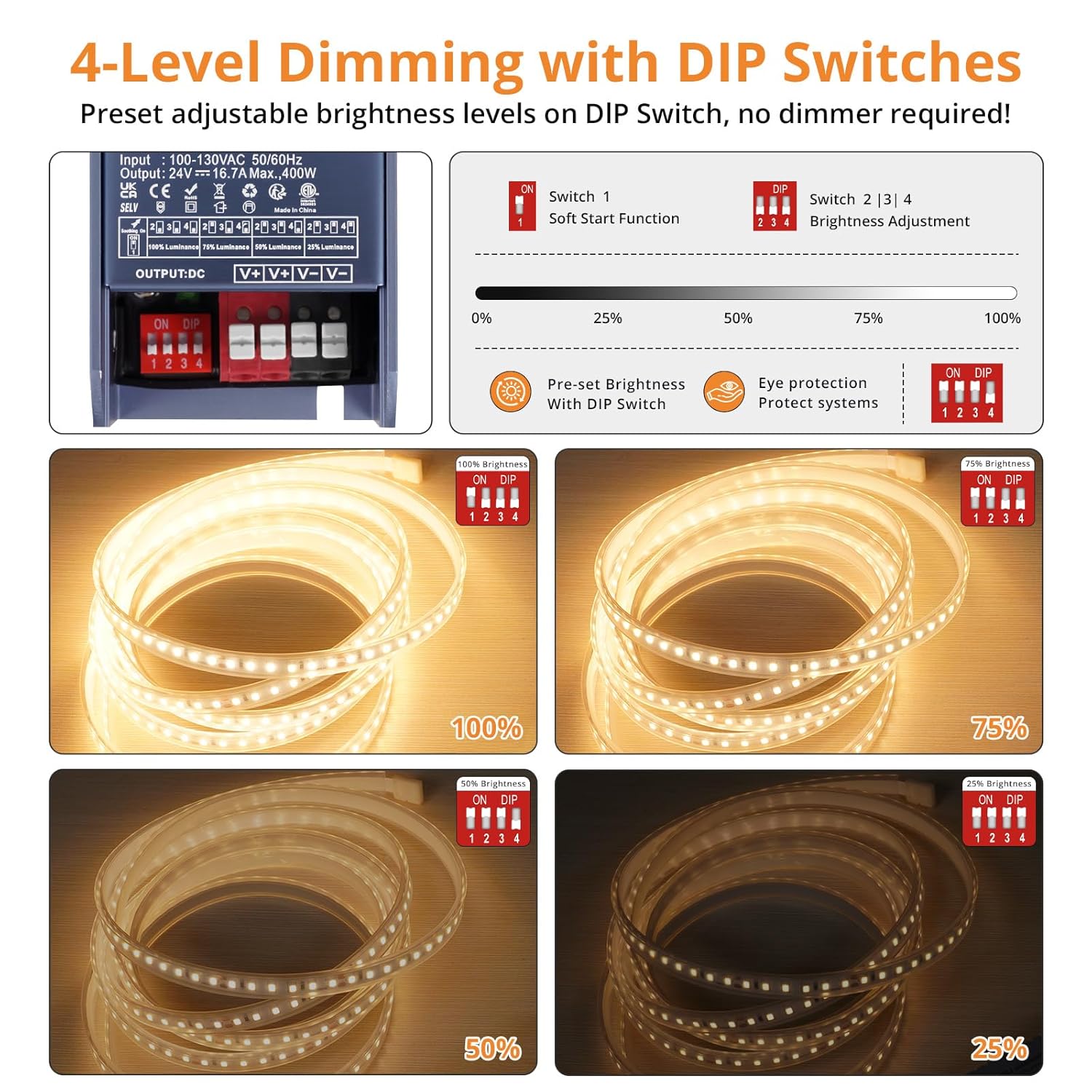

- Dimmable Function: 24V 400W LED driver has 4-bit dip switch dimming preset to meet your diverse brightness requirements. Four levels of dimming, which can adjust the brightness of 25%, 50%, 75% and 100%. The 5-second slow start function provides a softer and more natural brightness transition, which improves the visual comfort at the moment of turning on the light. (Please note that this product is not compatible with external dimmer switches.)
- Scientific Heat Dissipation Design: 24V scientific heat dissipation design of LED power supply can effectively help internal electronic components to cool down. 24V power supply adopts durable aluminum shell and honeycomb design, and semi-pouring glue filling process, which is scientific in design and helpful to heat dissipation/earthquake resistance/dust prevention/moisture prevention of electronic components. Smooth and quiet work, no fan design, no noise, no flicker.
- Easy Installation: The 24V power adapter is designed for dry indoor environments and offers quick, effortless setup. Featuring convenient push-in terminals, our low-voltage power supply eliminates the need for tools or screws. Simply press, insert the wire, and achieve a secure connection—fast and reliable.
- Please note that the 4-level dimming function supports most standard low-output light strips. However, for high-output types like COB strips, only the 75% and 100% levels are available. This is because these lamps require a minimum of 20V to operate, a threshold not reached at the lower dimming levels, which are designed for standard strips operating at around 16V.
- To minimize line loss and ensure stable operation, it is crucial to keep the power supply close to the LED lights when the load approaches 80% of its maximum capacity. Additionally, always use cables with a sufficient gauge that are rated for the actual load. Please note that the terminal blocks support a maximum of 11AWG wire.
| Brand Name | YAYZA! |
|---|---|
| Part Number | DT-DE24V-400W |
| Manufacturer | YAYZA! |
| Power Source | Corded Electric |
| Current Rating | 16.7 Amps |
| Minimum Frequency | 50 Hz |
| Specification Met | CE |
| Included Components | LED Driver |
| Item Dimensions D x W x H | 9.29"D x 1.93"W x 1.14"H |
